Farm PV Solutions 20KW Solar Energy System 200KW 300KW 1 MW 1MW Solar panel system

161.59 ex. VAT

In stock

Sold by

SKU: 60816830000 Category:

Description

Product Details

Which solar power system is suitable for me?

Mars solar systems can be used in homes, offices, villas, hospitals, churches, etc.
Mars solar power is from 300w to 250KW, you can choose according to your own needs.
if you do not know which model system is suitable for you, you can consult us.
Our 8years experience sale manager will help you configure the system in 12hrs.
Product indication

Why choose to use the MARS solar system?

Solar energy is now the most environmentally friendly energy source in the world. Using the MARS solar system can reduce your electricity bill by 90%.

We have 10years experience in solar products,we have exported to more than 100 countries and regions.

We have professional installation team. if necessary,we can send engineer to your country, guide the installation.

We have our own factory, use USA and Japan brand power materials,perfectly for quality control.

We have developed some agent, convenience to provide after sale service to customer

Product Parameters
10KW Off Grid Solar Power System Components List
Item
Model
Description
Quantity
1
Solar Panel
A grade Mono 360W solar panel,18% efficiency
28pieces
2
PV array combiner
8T-96V Multiple PV strings inputs,anti-thunder
1 piece
3
Solar controller
100A96V MPPT solar charge controller
1 piece
4
Inverter
10KW 96VDC 110V/120V/220V/230V/240V
output Japan brand IGBT material
1piece
5
Gel battery
12V200AH Deep cycle maintenance-free,
5-8years use life
16pieces
6
Solar bracket
Slope rooftop or flat ground,Aluminum alloy,anti-oxidation
1 set
7
Cable / connector
1set battery cable//150m PV cable/MC4
1 set
This system solution is just for reference. It can be adjusted based on actual condition and requirement. All parts have been tested and proven in actual operation with enough reliability and stability. It is suggested to buy whole system from us to guarantee the system compatibility.
300W~250KW off grid solar power system Components

Solar panel

250W~350W monocrystalline solar panel
A grade SUNTECH cells of high efficiency 18%
Vmp:17.6V Voc:21.6V Imp:13.89A Size :1640*983*35mm
Operating temperature:-20℃~+80℃
25 years life time, CE ROHS approval

PV array combiner

4T/6T/8T/10T/16T Multiple PV strings inputs.

Simplify wiring between PV array and controller.

Protect controller from thunderstorm& surge protection, max open circuit voltage is 500V

solar hybrid inverter

1KW~100KW pure sine wave inverter with MPPT solar charge controller, Optional charge by generator.90%-95% charge efficiency, Protection against anti-charge at night,battery over charge, over discharge protection, Joint-reversed of solar modules, LCD display, grid bypass, With AC charger built in, short-circuit, over load, and low-voltage protection Output:110V,120V,220V,230V,240V,380V,400V.415V copper transformer

Gel Battery

Capacity:12V/200AH Deep cycle maintenance-free gel battery, Service life:6-8 years ,Size:522*240*219mm

Solar panel bracket

Slope Rooftop or Flat ground
design base on your installation place
including complete fittings
wind load:55m/s,snow load:1.5kn/m2

Structure: Aluminum alloy ,anti-oxidation treatment

Cables

1)1set battery cable and terminal
2)1set 4mm2 PV cable
3)1set PV terminals and MC4

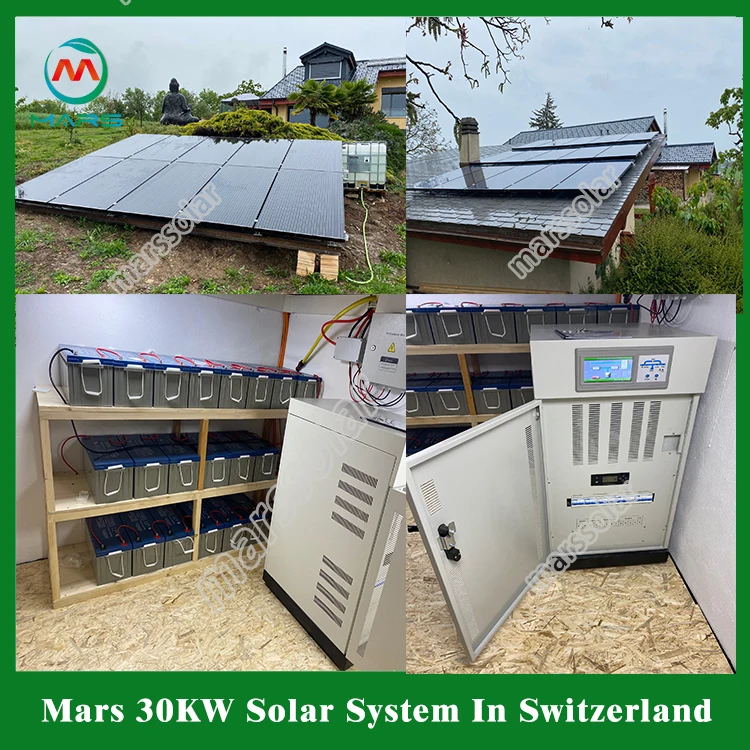

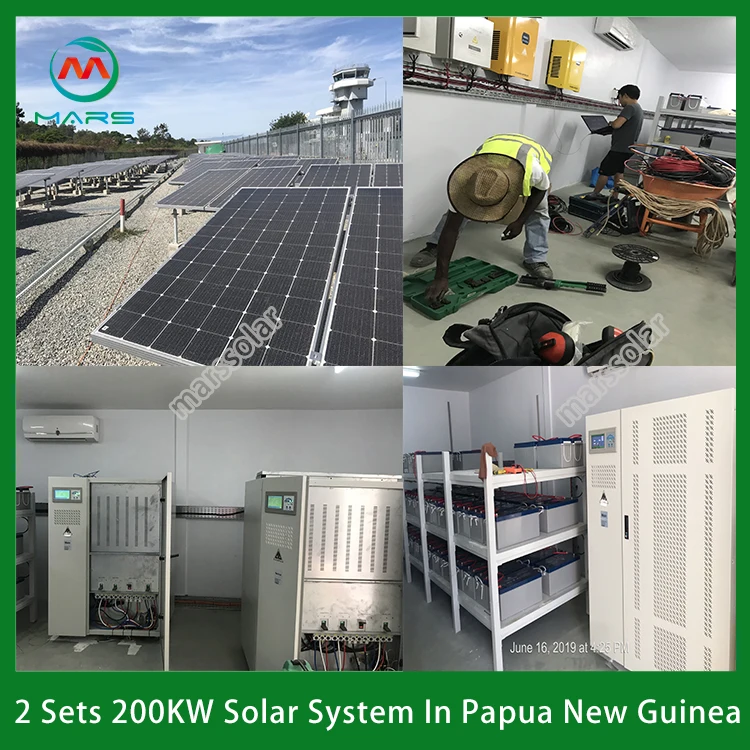

Our Project
Our Factory
PACKING AND SHIPPING
Payment
FAQ

Q:Are you factory or trading company?
A:We have 3000 sqm modern factory.with 4 production lines.We have 40 factory workers and 5 of them are quality control and engineer guys.Welcome to visit our factory.

Q:How long is the lead time of orders?
A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2days tu send goods.

Q:What’s the warranty of products?
A:Suggest buy all system from our factory, solar panel have 10 years warranty ,other parts
all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality.

Q:Can we get support if we have our owm market position?
A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for you.

Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.

Q:Can I install it myself?
A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to country,and guide the installation.

Q:How to calculate the freight?
A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us.

Additional information

Inverter

Wall mounted pure sine wave inverter

Place of Origin

Guangdong, China

Warranty

solar panel 10years,another accessories is 2years

Controller Type

MPPT, IGBT

Specification

Normal

Use life

solar panel have 25years,another accessories have 10years

CE Certified.
Model Number

MSP

Mounting Type

Ground Mounting, Roof Mounting, Carport Mounting, BIPV Mounting

Battery Type

gel battery

Solar panel

A grade mono solar panel

Brand Name

OEM

Work Time (h)

24hrs

Solar Panel Type

Monocrystalline Silicon

Type

Off Grid Solar System

Product name

inverter solar power system

Battery

Deep Cycle Maintenance-free battery

RoHS Certified.
Output Voltage (V)

110/120/220/230V

Application

Home

Certificate

CE ROHS
